Programing/Framework

[spring] URL path template에서 매핑된 값 구하기

인터셉터를 구현하다보니 URL 요청에서 template로 매핑된 부분의 값을 구할 필요가 있었다.

아래 코드에서 thisValue에 해당하는 부분이다.

@GetMapping("/i/wanna/{thisValue}/really")
public SomeResponse getSomeHanlder(@PathVariable String thisValue) {
	// ...

어떻게 구할까 고민을 하다가 @PathVariable 를 처리하는 PathVariableMethodArgumentResolver 에서 힌트를 얻을 수 있었다.

package org.springframework.web.servlet.mvc.method.annotation;

public class PathVariableMethodArgumentResolver extends AbstractNamedValueMethodArgumentResolver
		implements UriComponentsContributor {

	@Override
	@SuppressWarnings("unchecked")
	@Nullable
	protected Object resolveName(String name, MethodParameter parameter, NativeWebRequest request) throws Exception {
		Map<String, String> uriTemplateVars = (Map<String, String>) request.getAttribute(
				HandlerMapping.URI_TEMPLATE_VARIABLES_ATTRIBUTE, RequestAttributes.SCOPE_REQUEST);
		return (uriTemplateVars != null ? uriTemplateVars.get(name) : null);
	}

코드는 복잡한데 getAttribute로 특정 key의 값을 구해오는 과정이다.

이 Map에는 key가 템플릿부분의 이름이, value가 매핑된 값이 저장이 되는 구조이다.

package org.springframework.web.servlet;

public interface HandlerMapping {

	String URI_TEMPLATE_VARIABLES_ATTRIBUTE = HandlerMapping.class.getName() + ".uriTemplateVariables";

HandlerMapping.class.getName() 부분은 패키지명을 포함하는 클래스의 이름이므로,

org.springframework.web.servlet.HandlerMapping

라는 값을 가지게 된다.

따라서 URI_TEMPLATE_VARIABLES_ATTRIBUTE 는  "org.springframework.web.servlet.HandlerMapping.uriTemplateVariables" 라는 문자열을 가지게 된다.



PathVariableMethodArgumentResolver 에서는 NativeWebRequest을 이용해서 getAttribute를 통해 구했지만 사실 인스턴스를 만든 HttpServletRequest 에서 직접 구해와도 된다. 왜냐하면 이것은 ServletWebRequest 이고 invokeHandlerMethod 과정에서 만들어지는 인스턴스이기 때문이다.

package org.springframework.web.context.request;

public class ServletRequestAttributes extends AbstractRequestAttributes {

	private final HttpServletRequest request;

	@Override
	public Object getAttribute(String name, int scope) {
		if (scope == SCOPE_REQUEST) {
			if (!isRequestActive()) {
				throw new IllegalStateException(
						"Cannot ask for request attribute - request is not active anymore!");
			}
			return this.request.getAttribute(name); // here
		}
		else {
			HttpSession session = getSession(false);
			if (session != null) {
				try {
					Object value = session.getAttribute(name);
					if (value != null) {
						this.sessionAttributesToUpdate.put(name, value);
					}
					return value;
				}
				catch (IllegalStateException ex) {
					// Session invalidated - shouldn't usually happen.
				}
			}
			return null;
		}
	}

구현체 중 카탈리나

package org.apache.catalina.connector;

public class RequestFacade implements HttpServletRequest {

    protected Request request = null;

    @Override
    public Object getAttribute(String name) {

        if (request == null) {
            throw new IllegalStateException(
                            sm.getString("requestFacade.nullRequest"));
        }

        return request.getAttribute(name);
    }
    // ...

public class Request implements HttpServletRequest {

    @Override
    public Object getAttribute(String name) {
        // Special attributes
        SpecialAttributeAdapter adapter = specialAttributes.get(name);
        if (adapter != null) {
            return adapter.get(this, name);
        }

        Object attr = attributes.get(name);

        if (attr != null) {
            return attr;
        }

        attr = coyoteRequest.getAttribute(name);
        if (attr != null) {
            return attr;
        }
        if (TLSUtil.isTLSRequestAttribute(name)) {
            coyoteRequest.action(ActionCode.REQ_SSL_ATTRIBUTE, coyoteRequest);
            attr = coyoteRequest.getAttribute(Globals.CERTIFICATES_ATTR);
            if (attr != null) {
                attributes.put(Globals.CERTIFICATES_ATTR, attr);
            }
            attr = coyoteRequest.getAttribute(Globals.CIPHER_SUITE_ATTR);
            if (attr != null) {
                attributes.put(Globals.CIPHER_SUITE_ATTR, attr);
            }
            attr = coyoteRequest.getAttribute(Globals.KEY_SIZE_ATTR);
            if (attr != null) {
                attributes.put(Globals.KEY_SIZE_ATTR, attr);
            }
            attr = coyoteRequest.getAttribute(Globals.SSL_SESSION_ID_ATTR);
            if (attr != null) {
                attributes.put(Globals.SSL_SESSION_ID_ATTR, attr);
            }
            attr = coyoteRequest.getAttribute(Globals.SSL_SESSION_MGR_ATTR);
            if (attr != null) {
                attributes.put(Globals.SSL_SESSION_MGR_ATTR, attr);
            }
            attr = coyoteRequest.getAttribute(SSLSupport.PROTOCOL_VERSION_KEY);
            if (attr != null) {
                attributes.put(SSLSupport.PROTOCOL_VERSION_KEY, attr);
            }
            attr = attributes.get(name);
            sslAttributesParsed = true;
        }
        return attr;
    }



그렇다면 누가 이 값을 넣어줄까?

DispatcherServelt에 핵심 동작은 doDispatch 라는 메서드에서 이루어 진다.

package org.springframework.web.servlet;

public class DispatcherServlet extends FrameworkServlet {

	@Nullable
	private List<HandlerMapping> handlerMappings; // 구현은 ArrayList로..

	protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

				// Determine handler for the current request.
				mappedHandler = getHandler(processedRequest); // 여기!
				if (mappedHandler == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// Determine handler adapter for the current request.
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				String method = request.getMethod();
				boolean isGet = "GET".equals(method);
				if (isGet || "HEAD".equals(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}

				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// Actually invoke the handler.
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}

				applyDefaultViewName(processedRequest, mv);
				mappedHandler.applyPostHandle(processedRequest, response, mv);
	// ..

	@Nullable
	protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
		if (this.handlerMappings != null) {
			for (HandlerMapping mapping : this.handlerMappings) {
				HandlerExecutionChain handler = mapping.getHandler(request);
				if (handler != null) {
					return handler;
				}
			}
		}
		return null;
	}

처리할 핸들러를 가져올 때(getHandler) 내부에서 값을 넣어주게 된다.

좀 더 구체적으로 설명하면 AbstractHandlerMethodMapping 에서 lookupHandlerMethod 를 수행할 때  handleMatch 부분에서 값이 세팅이 된다.

package org.springframework.web.servlet.handler;

public abstract class AbstractHandlerMethodMapping<T> extends AbstractHandlerMapping implements InitializingBean {

	@Nullable
	protected HandlerMethod lookupHandlerMethod(String lookupPath, HttpServletRequest request) throws Exception {
		List<Match> matches = new ArrayList<>();
		List<T> directPathMatches = this.mappingRegistry.getMappingsByUrl(lookupPath);
		if (directPathMatches != null) {
			addMatchingMappings(directPathMatches, matches, request);
		}
		if (matches.isEmpty()) {
			// No choice but to go through all mappings...
			addMatchingMappings(this.mappingRegistry.getMappings().keySet(), matches, request);
		}

		if (!matches.isEmpty()) {
			Comparator<Match> comparator = new MatchComparator(getMappingComparator(request));
			matches.sort(comparator);
			Match bestMatch = matches.get(0);
			if (matches.size() > 1) {
				if (logger.isTraceEnabled()) {
					logger.trace(matches.size() + " matching mappings: " + matches);
				}
				if (CorsUtils.isPreFlightRequest(request)) {
					return PREFLIGHT_AMBIGUOUS_MATCH;
				}
				Match secondBestMatch = matches.get(1);
				if (comparator.compare(bestMatch, secondBestMatch) == 0) {
					Method m1 = bestMatch.handlerMethod.getMethod();
					Method m2 = secondBestMatch.handlerMethod.getMethod();
					String uri = request.getRequestURI();
					throw new IllegalStateException(
							"Ambiguous handler methods mapped for '" + uri + "': {" + m1 + ", " + m2 + "}");
				}
			}
			request.setAttribute(BEST_MATCHING_HANDLER_ATTRIBUTE, bestMatch.handlerMethod);
			handleMatch(bestMatch.mapping, lookupPath, request); // 여기!
			return bestMatch.handlerMethod;
		}
		else {
			return handleNoMatch(this.mappingRegistry.getMappings().keySet(), lookupPath, request);
		}
	}

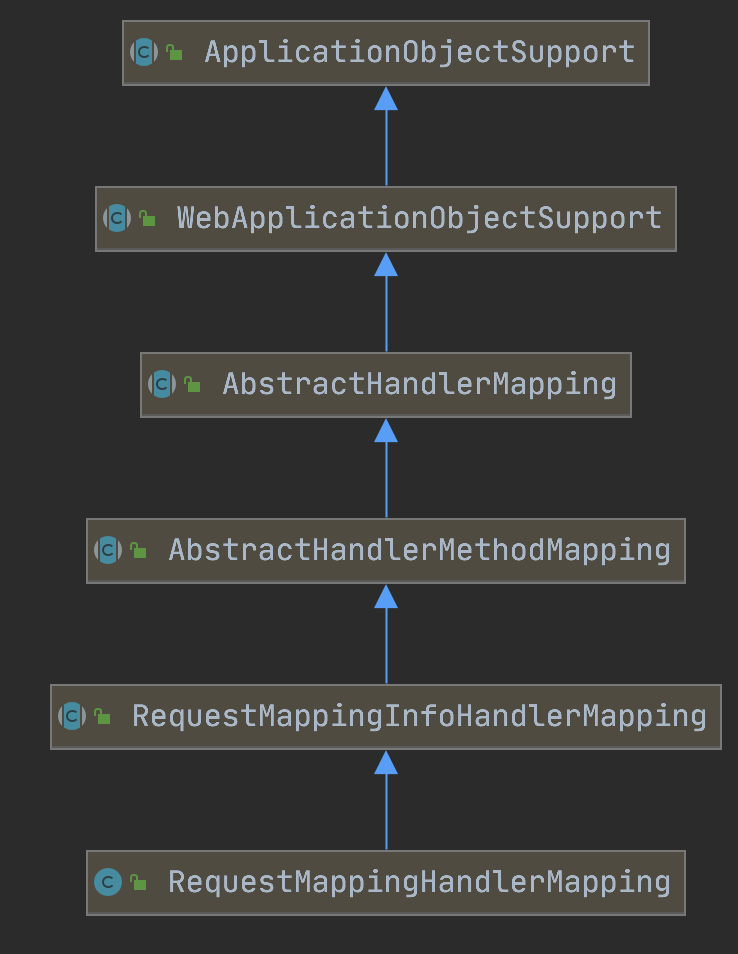

package org.springframework.web.servlet.mvc.method;

public abstract class RequestMappingInfoHandlerMapping extends AbstractHandlerMethodMapping<RequestMappingInfo> {

	/**
	 * Expose URI template variables, matrix variables, and producible media types in the request.
	 * @see HandlerMapping#URI_TEMPLATE_VARIABLES_ATTRIBUTE
	 * @see HandlerMapping#MATRIX_VARIABLES_ATTRIBUTE
	 * @see HandlerMapping#PRODUCIBLE_MEDIA_TYPES_ATTRIBUTE
	 */
	@Override
	protected void handleMatch(RequestMappingInfo info, String lookupPath, HttpServletRequest request) {
		super.handleMatch(info, lookupPath, request);

		String bestPattern;
		Map<String, String> uriVariables;

		Set<String> patterns = info.getPatternsCondition().getPatterns();
		if (patterns.isEmpty()) {
			bestPattern = lookupPath;
			uriVariables = Collections.emptyMap();
		}
		else {
			bestPattern = patterns.iterator().next();
			uriVariables = getPathMatcher().extractUriTemplateVariables(bestPattern, lookupPath);
		}

		request.setAttribute(BEST_MATCHING_PATTERN_ATTRIBUTE, bestPattern);

		if (isMatrixVariableContentAvailable()) {
			Map<String, MultiValueMap<String, String>> matrixVars = extractMatrixVariables(request, uriVariables);
			request.setAttribute(HandlerMapping.MATRIX_VARIABLES_ATTRIBUTE, matrixVars);
		}

		// 여기!
		Map<String, String> decodedUriVariables = getUrlPathHelper().decodePathVariables(request, uriVariables);
		request.setAttribute(HandlerMapping.URI_TEMPLATE_VARIABLES_ATTRIBUTE, decodedUriVariables);

		if (!info.getProducesCondition().getProducibleMediaTypes().isEmpty()) {
			Set<MediaType> mediaTypes = info.getProducesCondition().getProducibleMediaTypes();
			request.setAttribute(PRODUCIBLE_MEDIA_TYPES_ATTRIBUTE, mediaTypes);
		}
	}

PathMatcher

참고로 내부적으로 Ant 스타일의 path 패턴을 위해 PathMatcher 인터페이스의 구현체로 AntPathMatcher를 사용한다.

package org.springframework.util;

public class AntPathMatcher implements PathMatcher {

	@Override
	public Map<String, String> extractUriTemplateVariables(String pattern, String path) {
		Map<String, String> variables = new LinkedHashMap<>();
		boolean result = doMatch(pattern, path, true, variables);
		if (!result) {
			throw new IllegalStateException("Pattern \"" + pattern + "\" is not a match for \"" + path + "\"");
		}
		return variables;
	}

제일 위에 든 예로 설명하면

pattern에는 "/i/wanna/{thisValue}/really" 와 같은 패턴 문자열이 들어가고

path 에는 실제 들어온 요청 "/i/wanna/foo/really" 처럼 문자열이 들어온다.

결국 Map<String, String>에는 "thisValue" 가 키로, "foo"가 값으로 들어가게 된다.
